MarketView ExcelTools gives you the ability to create custom User-Defined Formulas (UDFs), and to automatically retrieve UDFs that you have developed using your MarketView Desktop application. User-Defined Formulas can be used in a Quote, History, or Chart query and are found in the Symbol Tree:
To Create a New User-Defined Formula

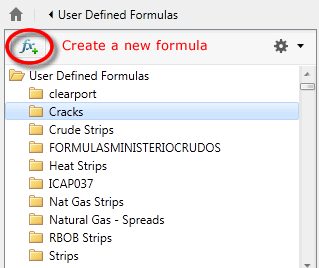

- Select the User Defined Formulas category from the Symbol Tree, then click the Formula icon:
The Formula dialog box appears:
- Give the formula a Name and Description for identification purposes.
- Enter the formula to be performed.
Syntax:
Processing Rules:
- $SV(/CLZ2)-$SV(CLV1)
- ((28*$SV(#XNRB001)/100)+(14*$SV(#XNHO001)/100)-$SV(#XNCL001))/100
- $MRV(/HOF10)+$MRV(/HOG10)/2
- $MRV(/NGJ05)-$MRV(/NGV05)
- Use parentheses to group calculations.
- Calculations are performed from left to right.
- Mathematical Operators include + - / *
- Enclose symbols in parentheses (/NGV11). This is necessary to distinguish the "/" used in the symbol from the mathematical division operator "/"
- Spaces are NOT NEEDED between operators.
- A UDF must contain at least one mathematical operator.
- Define the Attributes for the formula:
- Precision: Use the drop-down list to set the number of decimal places, from none to 6.
- Exchange Rate Source: If you wish to use a currency conversion on your formula, select the Exchange Rate Source and the Currency from the drop-down lists.
- Click Save to save the User-Defined Formula.
To Edit an Existing User-Defined Formula

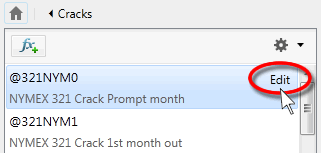

- Select the User Defined Formula from the Symbol Tree. Click the Edit link.
Result: The Formula dialog box appears.
- Make the changes to the formula and click Save.
Note: Any existing query that references the formula will automatically update to reflect the changes.
